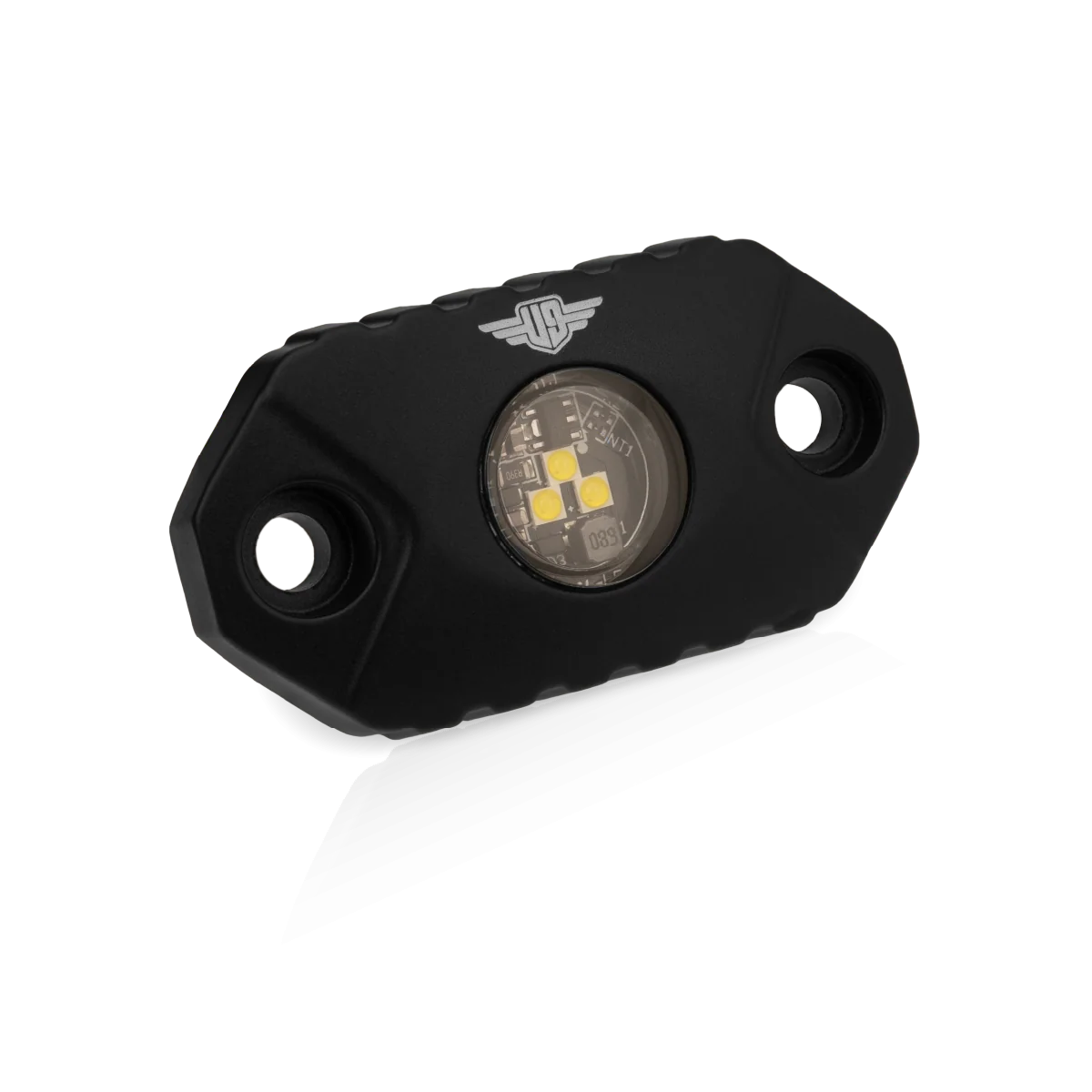

To withstand all the rocks, stones, and boulders passing beneath, it was clear that these little guys needed to be well-built.

That's why, with a 6063 Aluminum housing and lens made of GE Lexan® Polycarbonate material - we can confirm they are qualified for the job.

Not only can they be used to reveal the track beneath you - but with their wide 120º spread, and compact profile, the possibilities are limitless.

Mount them to the bonnet & light up the engine bay, inside wheel arches to aid tyre repairs, around the cab, in the cab - you can see the picture.



• Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
  IP68 for term-long submersion and total dust ingress.
  IP69K for stream jet cleaning.
• Housing: Die-cast 6063 aluminium housing with 304 Stainless Steel fastener. Overlaid with a UV & corrosion resistant Dupont® coating.
• Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
• Optics: 120°(Flood) spread.
• Technology: 3x Grade A Osram LED chips



 SPECS:

Input Power: 9-36V
Beam Pattern: Flood
Beam Spread: 120° Flood
Power: 9W
Current Draw: 0.2A @ 13.2V
Effective Lumen: 105 lm
LED Chips: Osram 3W
Colour Temp: 6000K
Housing Material: Die Cast 6063 Aluminium
Housing Coating: DuPont®
Lens Material: GE Lexan® Polycarbonate
IP Rating: IP68 / IP69K
Ventilation: Fully Sealed
Weight:
Body Dimensions: (L)70 x (H)38 x (W)19.3mm
Lens Dimensions:
Connector Type: Open Leads (no connector)
Operating Temp: -40ºC - 145ºC
